Siemens PXM40 HMI Touch Panel Commissioning: A Step-by-Step Guide with Images

Siemens PXM40 HMI Touch Panel is a powerful and user-friendly interface designed for monitoring and controlling building management systems🖥️With its modern design, responsive touchscreen, and seamless integration with Siemens controllers, the PXM40 enhances operational visibility and efficiency.🧠⚡

🛠️This guide provides a step-by-step commissioning process, supported by real images to help professionals set up and configure the PXM40 panel with ease.

🛠️Whether you're a technician, engineer, or system integrator, this post will ensure your commissioning process is smooth, accurate, and efficient.

📖Welcome to Insight Control System Blog Page📖

Siemens
TOUCH PANEL PXM-40

✅ Basics Overview:

  • The Siemens PXM40 is a Human-Machine Interface (HMI) touch panel designed for building automation systems, particularly in HVAC applications
  • It allows users to monitor, control, and configure Siemens Desigo systems efficiently.
  • User-friendly navigation for real-time monitoring and control of HVAC systems.
  • Multi-level user access control for security and restricted access.
  • Trend monitoring & alarm notifications for efficient system diagnostics.
  • Remote access via a web browser (in some configurations).

✅ Hardware Overview:

⮞ Display Size: 10.1" inch color touchscreen with an intuitive user interface.

⮞ Resolution: 1024 x 800

⮞ Power Supply: 24 Volt DC or AC,

⮞ Communication Ports: Ethernet (BACnet/IP) for system integration USB for software updates and data transfer.

⮞ Mounting: Panel-mounted or wall-mounted installation.

⮞ Home Screen: Displays system status, key parameters, and alarms.

⮞ Navigation Menu: Access different system functions (trends, schedules, alarms, settings).

⮞ Alarm Management: View, acknowledge, and reset alarms.

⮞ System Configuration: Modify network settings, user access, and date/time settings.

✅ Commissioning Guide:

  • Commissioning the Siemens PXM40 HMI Touch Panel involves installation, network setup, software configuration, and system testing.

Installation:

  • Mount the PXM40 in the control panel or operator console.
  • Connect the 24V DC power supply as per the wiring diagram.
  • Connect communication ports (Ethernet, BACnet, Modbus, etc.) according to the system architecture.

    Configuration:

    Power on the panel and access the setup menu.
    Configure basic settings:

    • Language selection
    • Date & Time settings
    • Network configuration (IP address for Ethernet communication)
    • BACnet settings (if applicable)

      Software Configuration:

      • Ensure the PXM40 firmware is up to date.
      • Load the necessary project files or application settings using Siemens tools (e.g., ABT Site or Desigo CC).
      • Configure communication protocols (BACnet/IP, Modbus, or others) to integrate with controllers and field devices.

        Testing & Finalization:

        • Verify the HMI screen functionality (touch response, display clarity).
        • Check communication with controllers, sensors, and actuators.
        • Test alarms, trends, and system interactions.

        • Ensure proper user access levels and security settings.
        • Save and back up configuration files.
        • Document settings and parameters.
        • Train end-users on basic operation and troubleshooting.

          ✅ Commissioning Step-by-Step:

          1. Connect the Desigo Touch panel to the corresponding network plug using the network cable (RJ45).
          • This process may take a few seconds; the Language page is displayed.
          • 16 languages are integrated English is the default language.
          • The page “Network Settings – IPv4” opens.

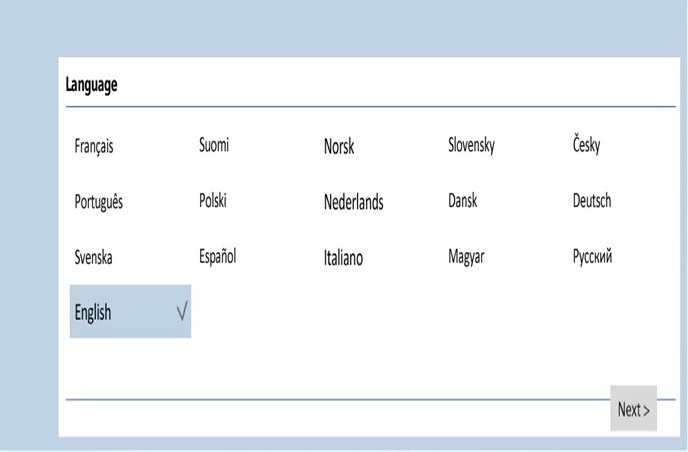

          Language

          2. Connect to power.

          3. Wait for the touch panel to start.

          4. Select the language.

          5. Save with Next

          Note

          Two ways are available for the following step:

          • Automatically using DHCP (self-explanatory).
          • Manual via the alphanumeric keypad.

          6. Tap Manual.

          7. Complete all fields.

          8. Finish with Next. (The server connection page opens)

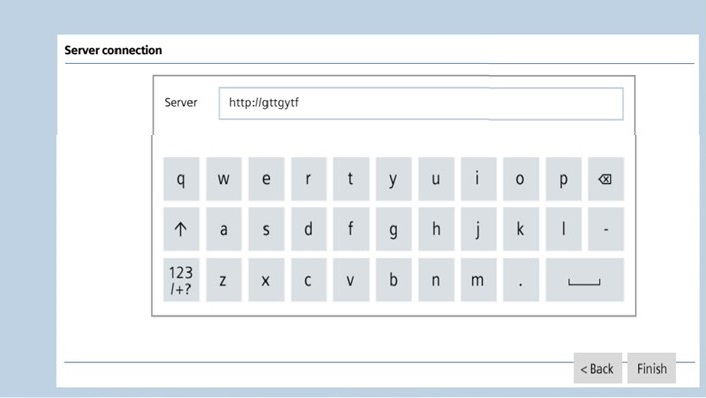

          Server connection

          9. Enter IP address or URL of the PXG3.W100.

          (This ought to be defined in XWP prior to this action.)

          subnet mask

          10. Complete with Finish.

          (The process may take a few seconds. The page with the location definition opens).

          11. Enter both Location and  Password.

          (This is not the user password, and it must also not match the user Password)

          location and password


          12. Tap OK to finish.(This concludes “Binding”.

          The main view for the desired project is displayed within a few seconds)

          siemens

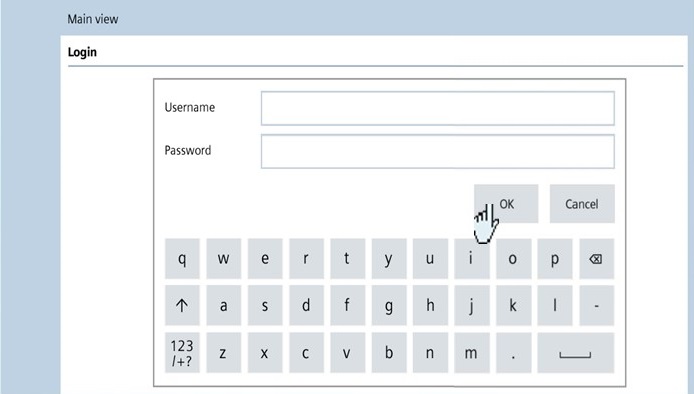

          13. Tap a blank area anywhere on screen.

          (This opens the login page.)

          14. Enter both user name and password.

          touch panel


          15. Tap OK.

          • The touch panel checks the entry. After successful login.
          • The main functions and information as per the user rights are displayed.
          • The user name is displayed in the status bar.


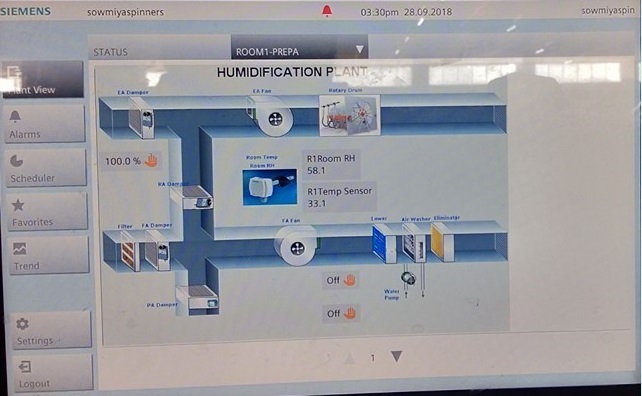

          Air handling unit



          humidification

          Error:

          Login error

          • Users immediately receive the following feedback for incorrect or improperly entered login information.


          Error


          Procedure in case of login error

          You can select between two options

          • Retry or Tap Cancel to return to the home page.

          Switch user

          Proceed as follows to switch user (e.g. shift work)

          Tap Logout.

          • This logs out the current user.
          • Log in the new user (as per Login, see above).

          Options

          • This completes the technical part of commissioning.
          • Different settings are available, however, for user-friendly operation of the touch panel.
          • They can be edited after login.
          ✅ Applications:

          • HVAC system monitoring & control (heating, cooling, ventilation).
          • Energy management in commercial buildings.
          • Integration with Siemens Desigo controllers for centralized automation.
          • Data logging and trend analysis for system optimization.


          🏁 Conclusion:

          • Successfully commissioning the Siemens PXM40 HMI ensures smooth integration with your automation environment and reliable system visualization.
          • By following the outlined steps from wiring and powering up to configuring IP settings and loading your HMI project you’ll have a fully operational panel that enhances your system’s performance.
